I.Opis

Chin Chin is a fried dough snack originally from West Africa. It is made from wheat flour. The process includes mixing, sheeting, cutting, and frying. The finished snack is hard, crisp, and aromatic. It has steady demand in local and African diaspora markets.

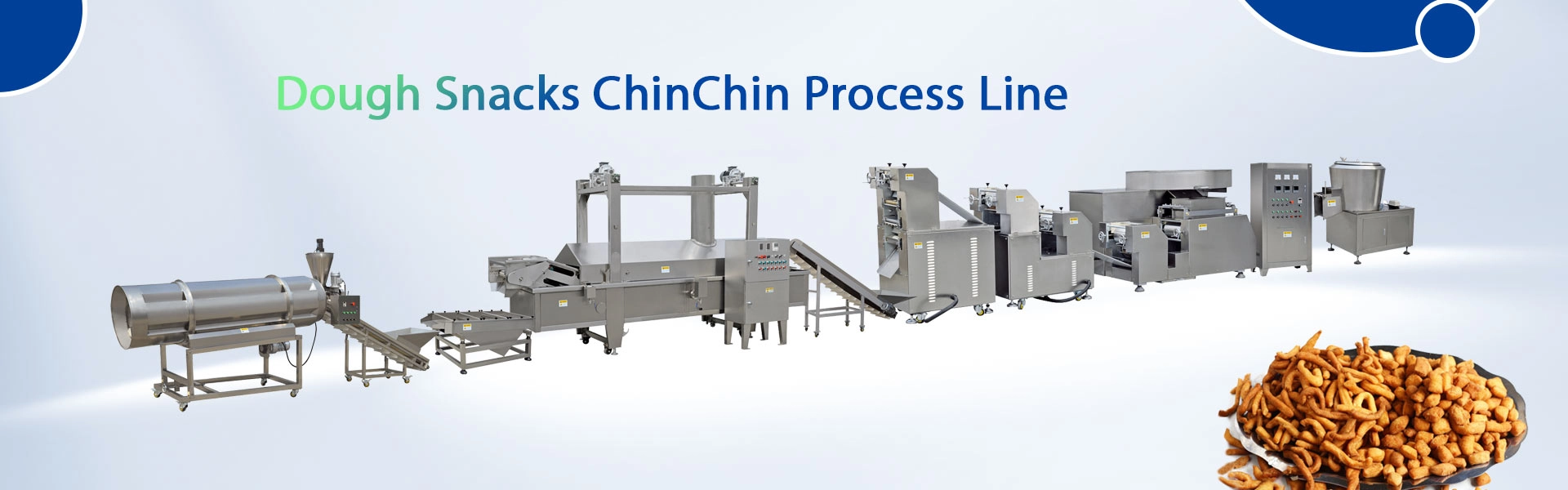

This production line is a complete set of equipment. It includes mixing, sheeting, cutting, frying, de-oiling, seasoning, and packaging units. The whole line runs continuously. Materials move automatically between steps. Output ranges from 150 to 300 kg per hour. It is suitable for small and medium-scale production.

II.Process Flow

1. Flour, sugar, fat, eggs, leavening agents, and spices are mixed in a mixer to form a uniform dough.
2. Then the dough goes into a sheeter. It is pressed into an even sheet through repeated rolling.
3. The sheet enters a cutting machine. Different dies can produce square, diamond, or strip shapes.
4. The cut pieces go into a continuous fryer. They are fried until golden and crisp.
5. Then they pass through a de-oiling machine to remove excess oil.
6. They may go to a seasoning drum.
7. After cooling, the product is ready for packaging.

Reference process: Mixing → Sheeting → Cutting → Frying → De-oiling → Seasoning → Cooling → Packaging

III.Equipment Composition

The line includes

1. a mixer,
2. sheeter,
3. cutting machine,
4. continuous fryer,
5. de-oiler,
6. seasoning drum,
7. cooling conveyor,
8. packaging machine
9. electrical control system.
10. All units are connected by conveying devices.

• The cutting machine can adjust piece sizes (thickness from 1.5 to 20 mm, width from 3 to 15 mm) and switch between shapes like squares, diamonds, and strips. The whole machine is made of 304 stainless steel and food-grade materials.
• Key parts are from reliable brands.
• The equipment runs steadily and lasts long.

IV.Technical Parameters

V.Pojemność

Hourly output ranges from 100 kg to 300 kg. Multiple sizes are available. Customization is flexible. It suits both small trial runs and large-scale production.
